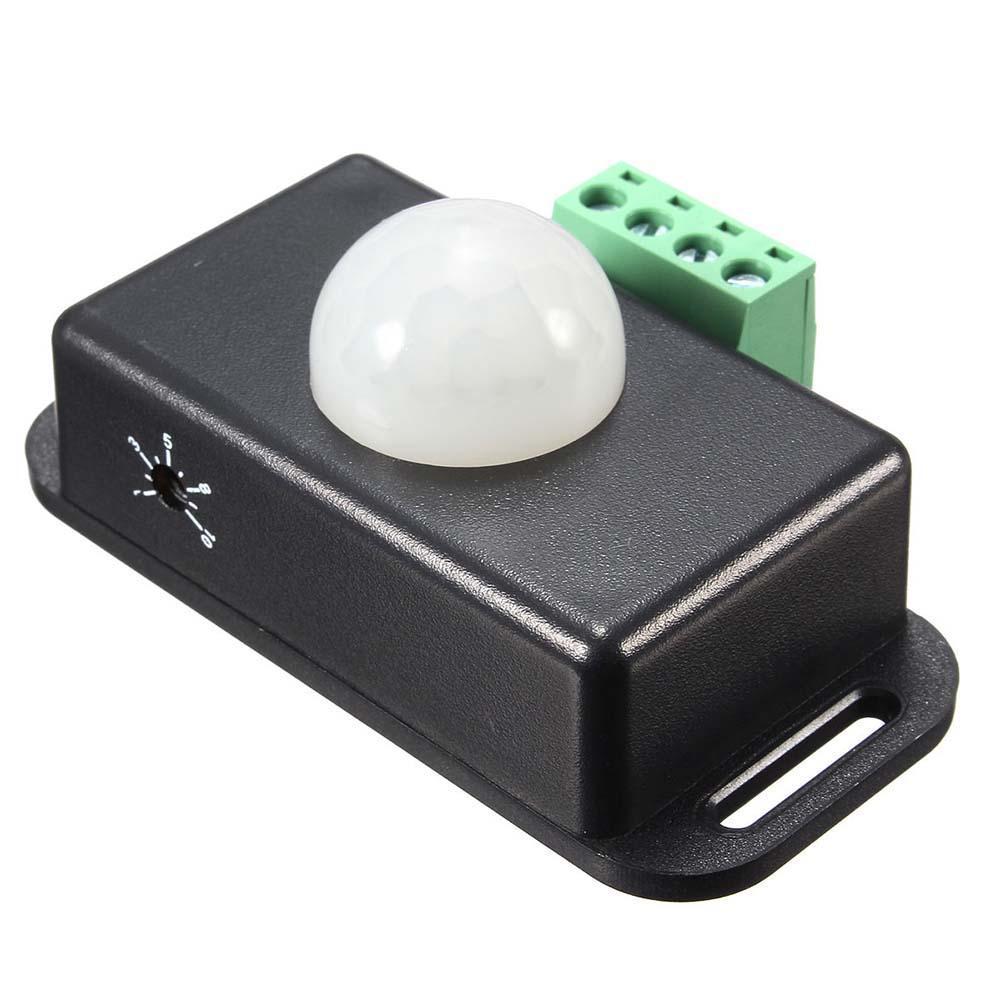

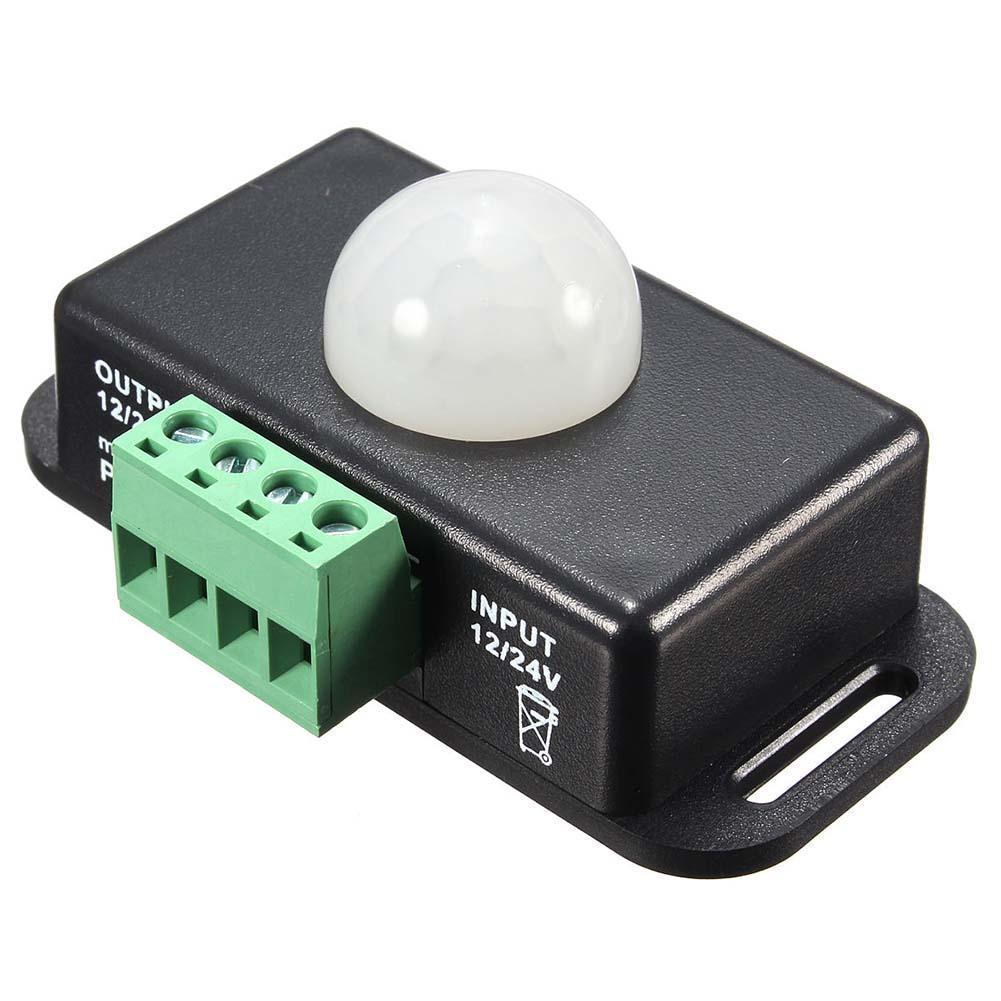

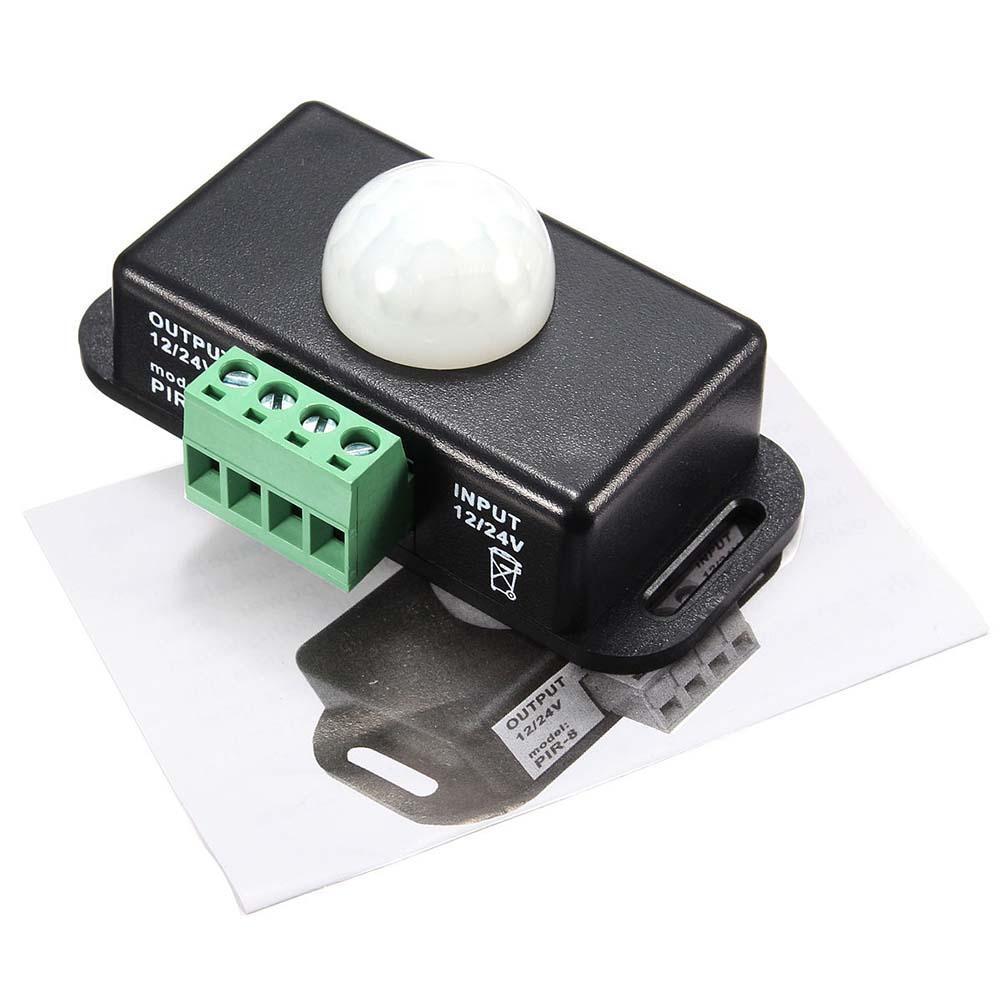

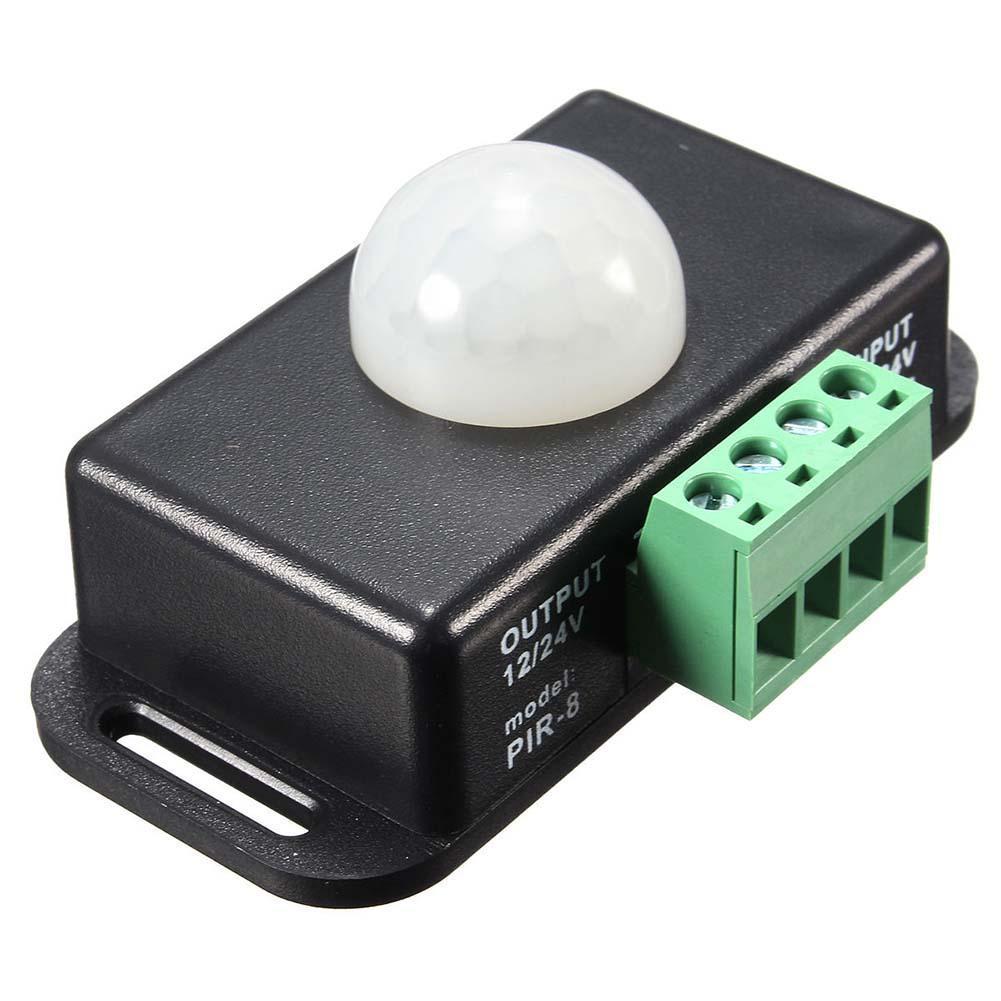

PIR Sensor LED motion sensor Switch Motion 12V 24V

250 ฿

รหัสสินค้า: PIR Sensor LED หมวดหมู่: ป้ายกำกับ: , ,

รายละเอียด

Product description

PIR Sensor LED motion 12V 24V PIR Sensor LED motion sensor Switch Motion Timer Function Sign Control PIR Controller LED Strips Lighting
Great for small 12 volt DC solar panel LED Lighting systems to conserve battery power; also well suited for occupancy LED lighting control and security LED Lighting systems. See the additional information and specification sheet in our listing pictures for more details.

Direction for use Features:
The human body induction switch is a kind of infrared detection controller, adopt infrared detection way to control load switch. Users can according to actual needs, installed the human body sensors in the appropriate environment.

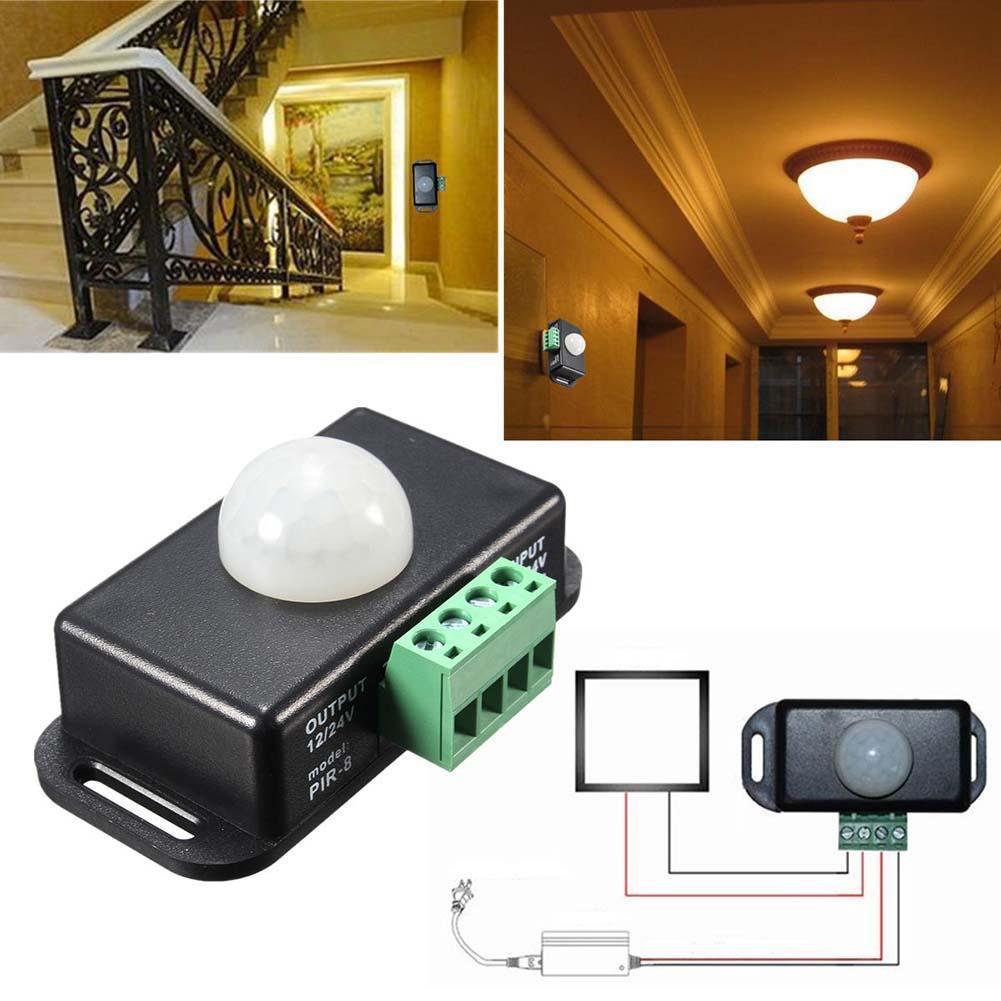

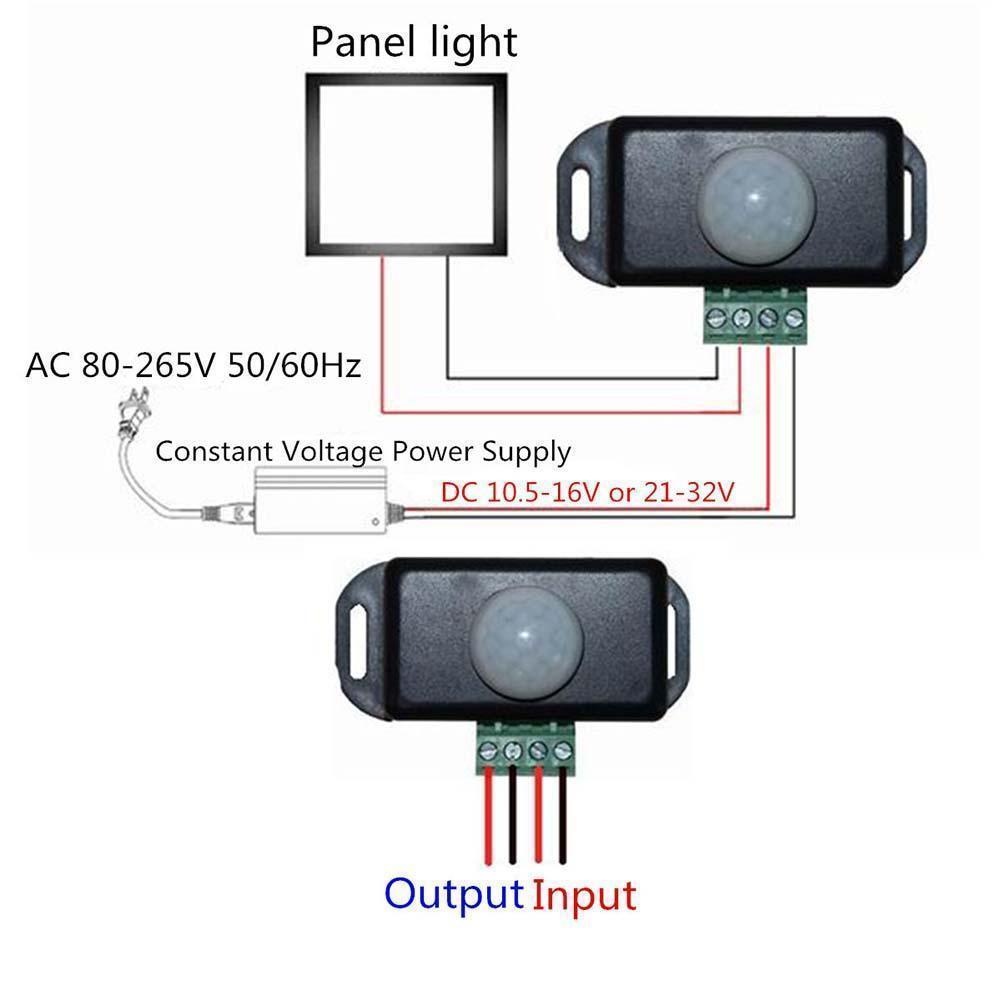

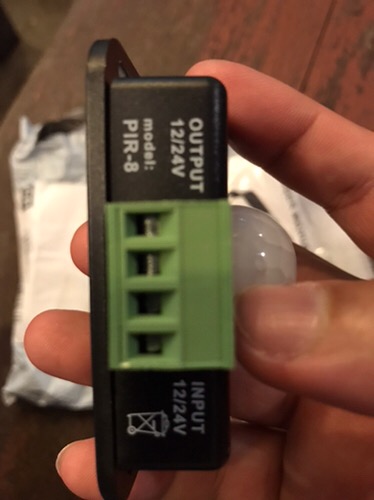

Connect the load wire at first, following by the power wire; Please ensure short circuit cannot occur between connecting wire before you turn on the power; when detected somebody, the load light will bright, when people leave time up to the setting of the delay time, the load lights will automatically turn off. Controller signal output line and input line should be connected correctly.
1.100% brand new and high quality infrared PIR motion sensor switch
2. Easy to install and simple to use.
3. Adjust the light soft and stable, no flickering.

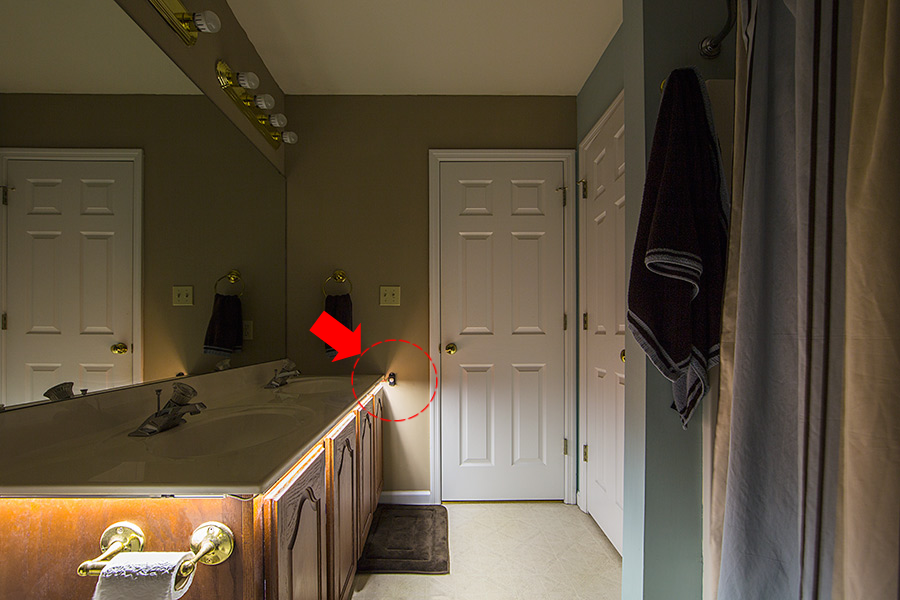

4. Mainly use to control LED light lamps and LED Strip.
5. You can conveniently to let the light auto on/off .The switch can detect human body’s infrared , and use infrared to control the load.
6. Users according to actual needs, the human body sensors installed in the appropriate environment.

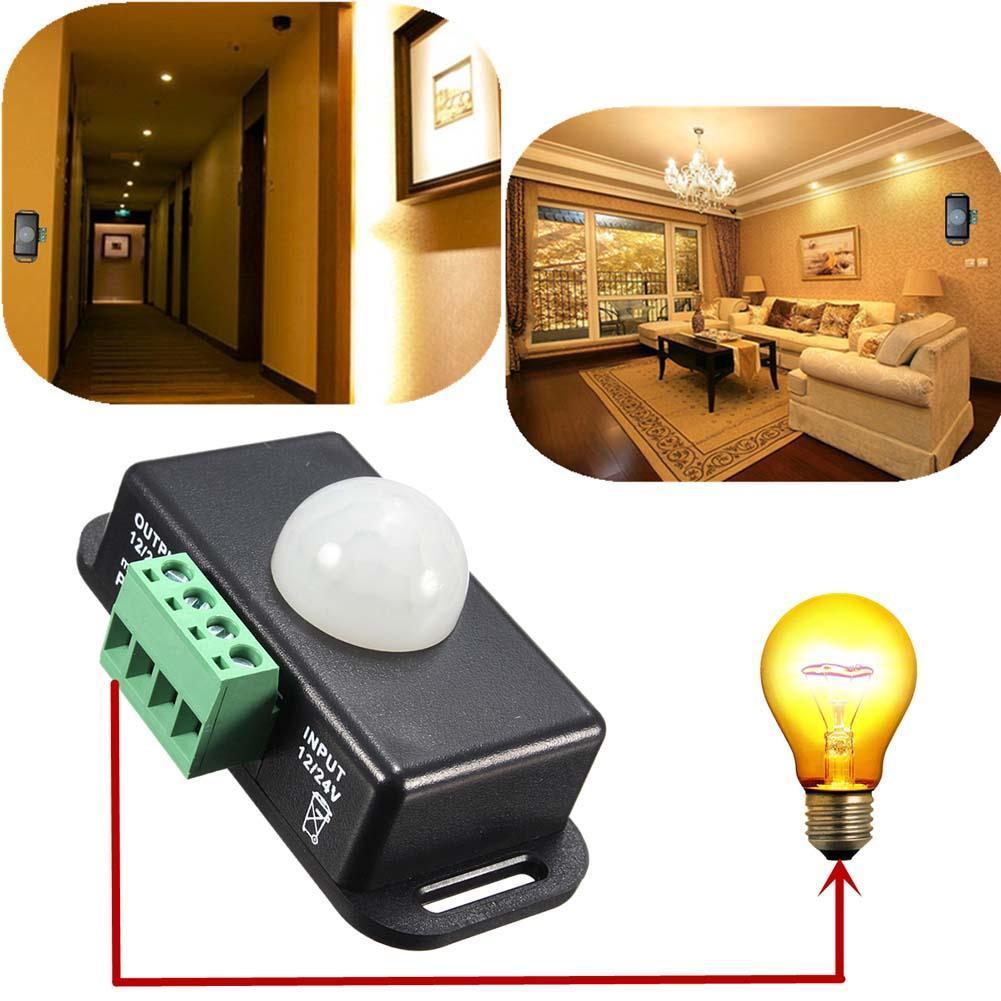

7. Applications: Incandescent lamp, energy-saving lamps, LED lamp, fluorescent lamp and other kinds of loads.

Specifications:
Power supply voltage: 12-24V
Output voltage: 12-24V
Max load current: 6A
Induction range: 8m

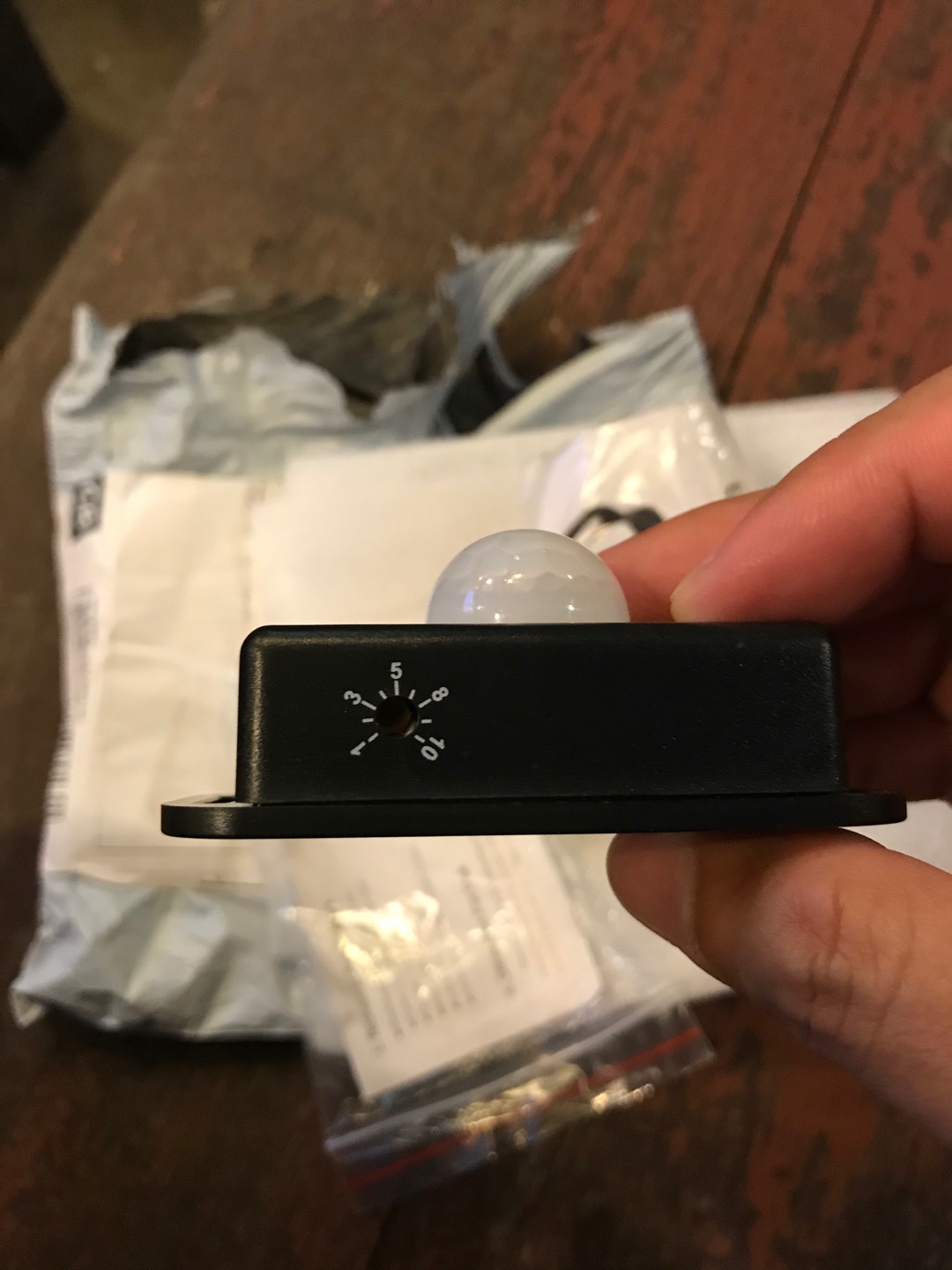

Delay time: 1-10min (adjustable)

1.Type: PIR Switch
2.Induction distance: 8 M
3.Induction angle: 60 degrees
4. Material: plastic and metal
5.Working temperature: -20-60 ℃
6.Supply voltage: 10.5-16V or 21-32V
7.Output voltage: 10.5-16V or 21-32V
8.Output current: 6A
9.Static power consumption: <1W
10.Output power: 12V: <96W, 24V: <192 W
11.Delay Time: 1-10min(adjustable)

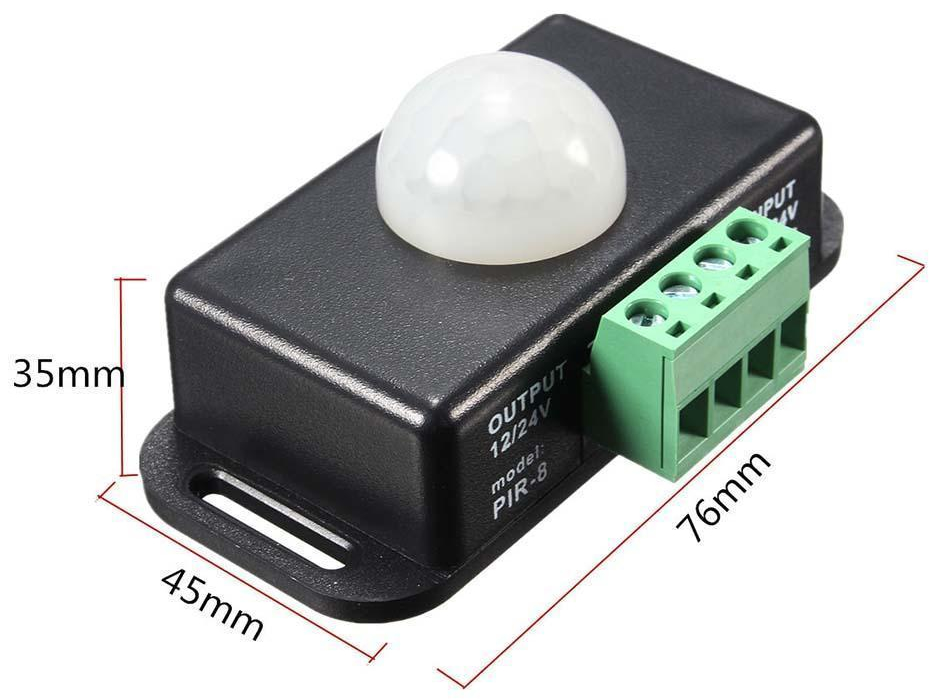

11.Dimensions: 76x45x35 mm(LxWxH)
12.Color: Black
