คำอธิบาย

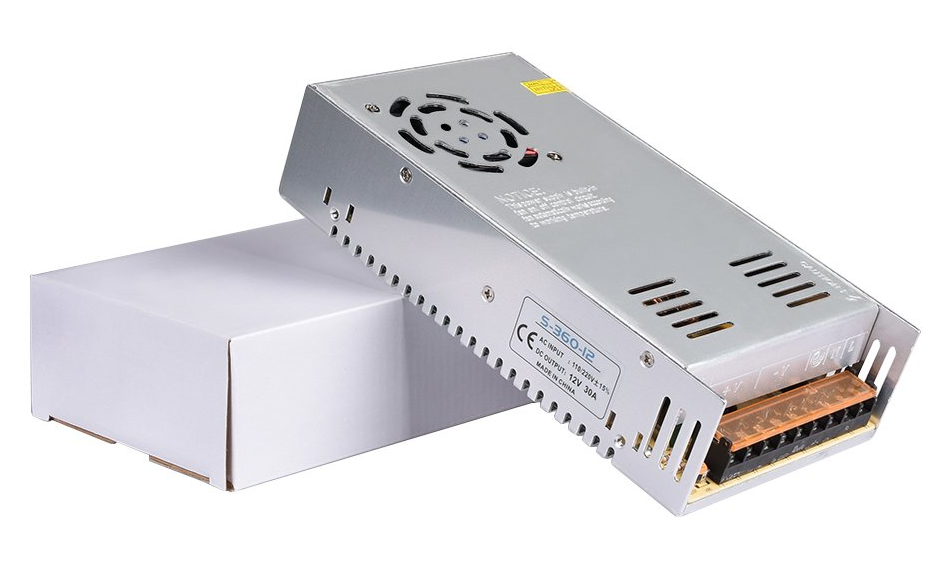

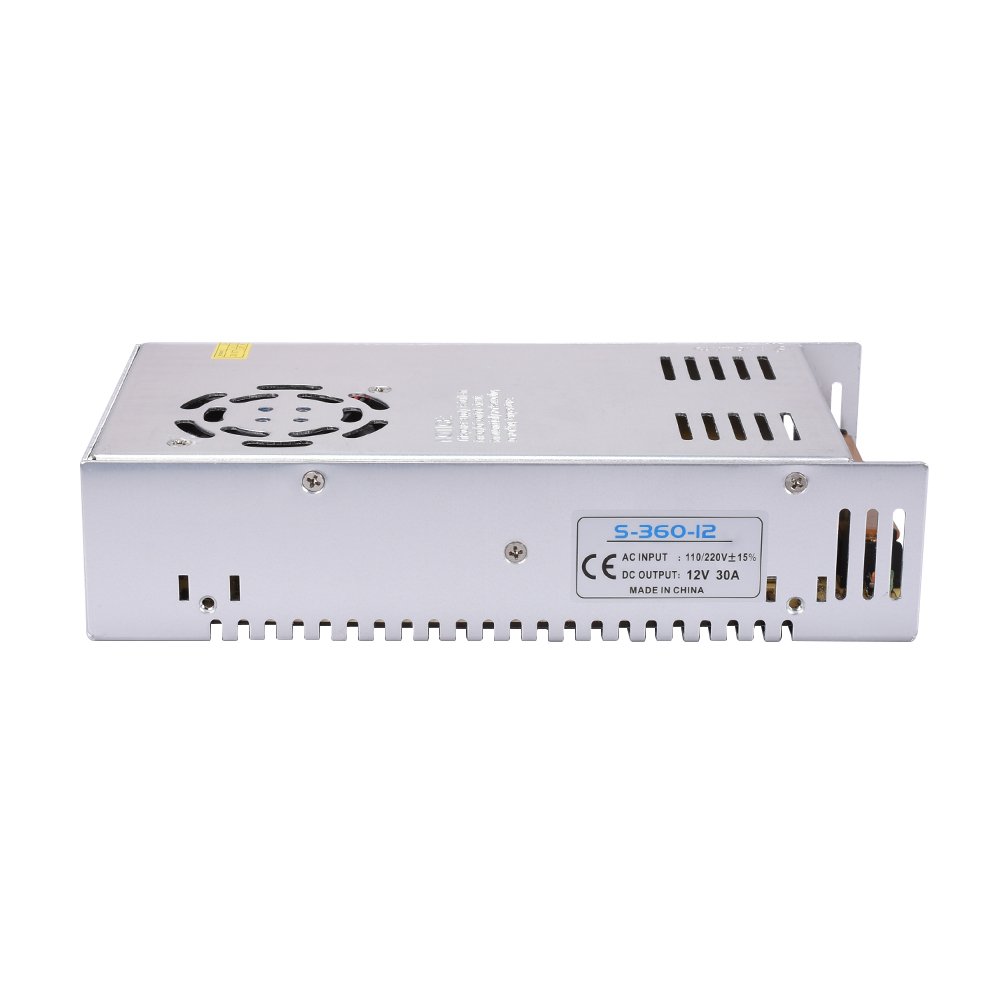

สวิทชิ่ง เพาวเวอร์ ซัพพลาย 30 แอมป์ / DC 12V

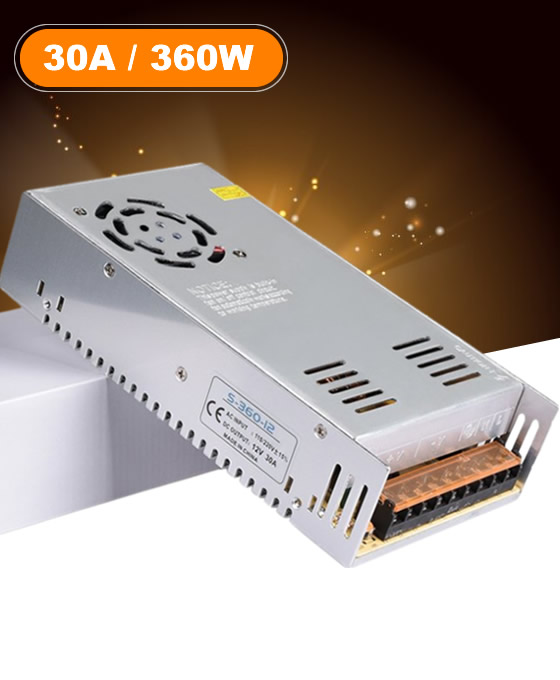

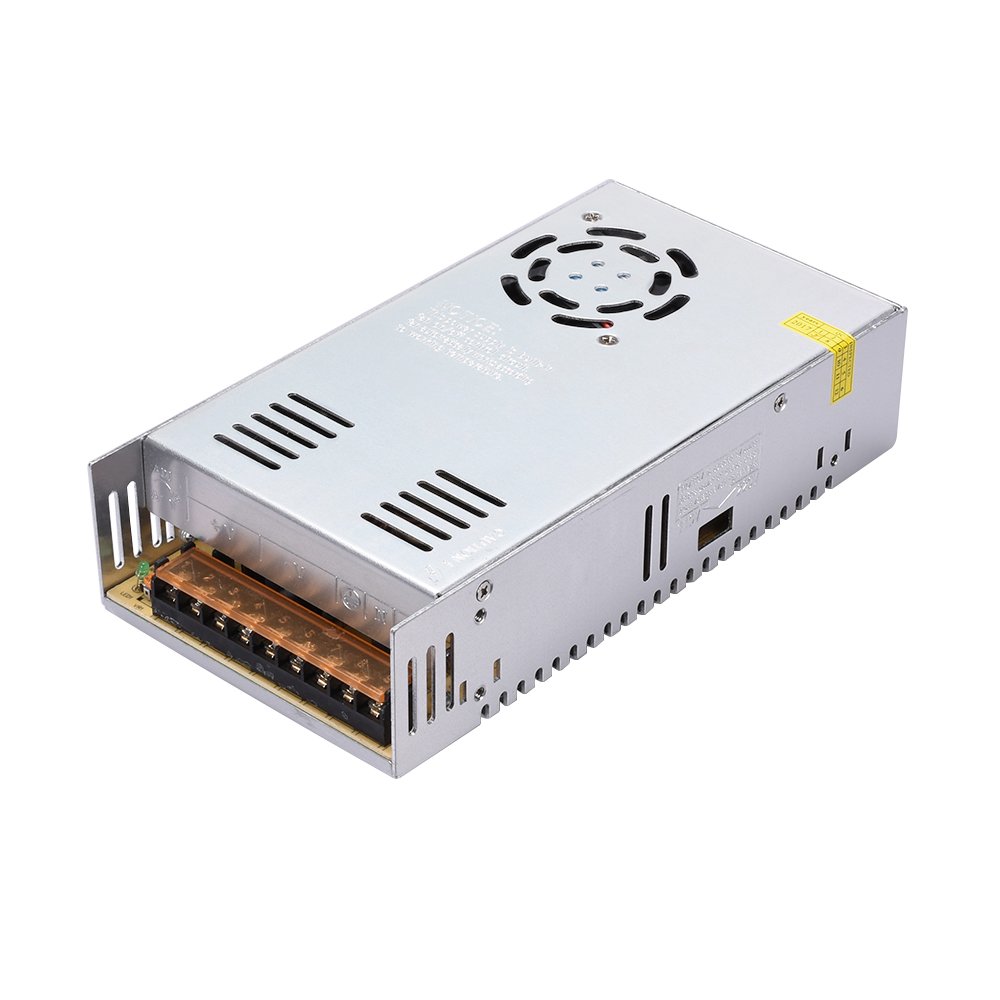

Switching Power Supply 360W
Features

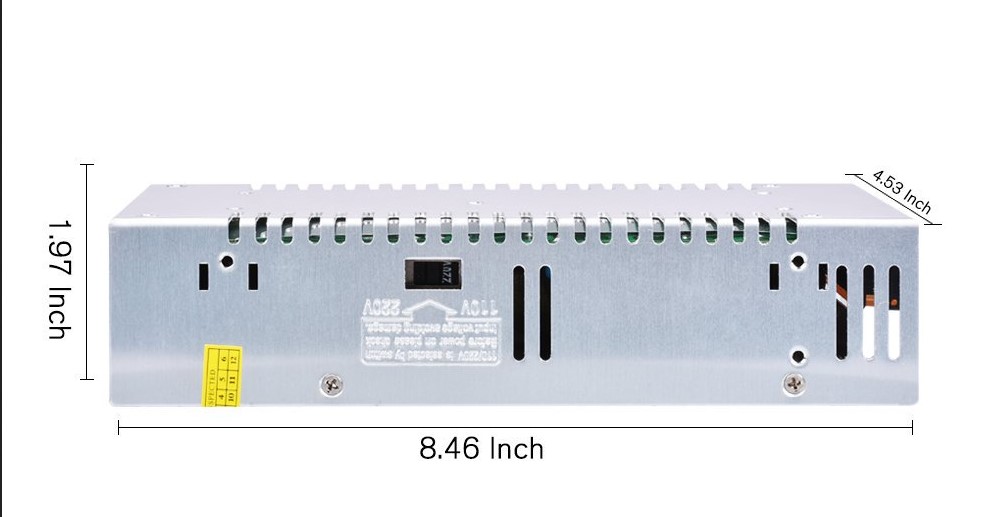

- Dimensions: 21.5 * 11.5 * 5.0 cm /8.46*4.53*1.97 inch (L*W*H)
- Operating temperature: -10 ? ~ +50 ?, 20% ~ 95% RH (no condensation)
- Storage temperature: -20 ? ~ +85 ?, 20% ~ 95% RH (no condensation)
- Temperature coefficient: 0.02 ~ 0.05% / ?

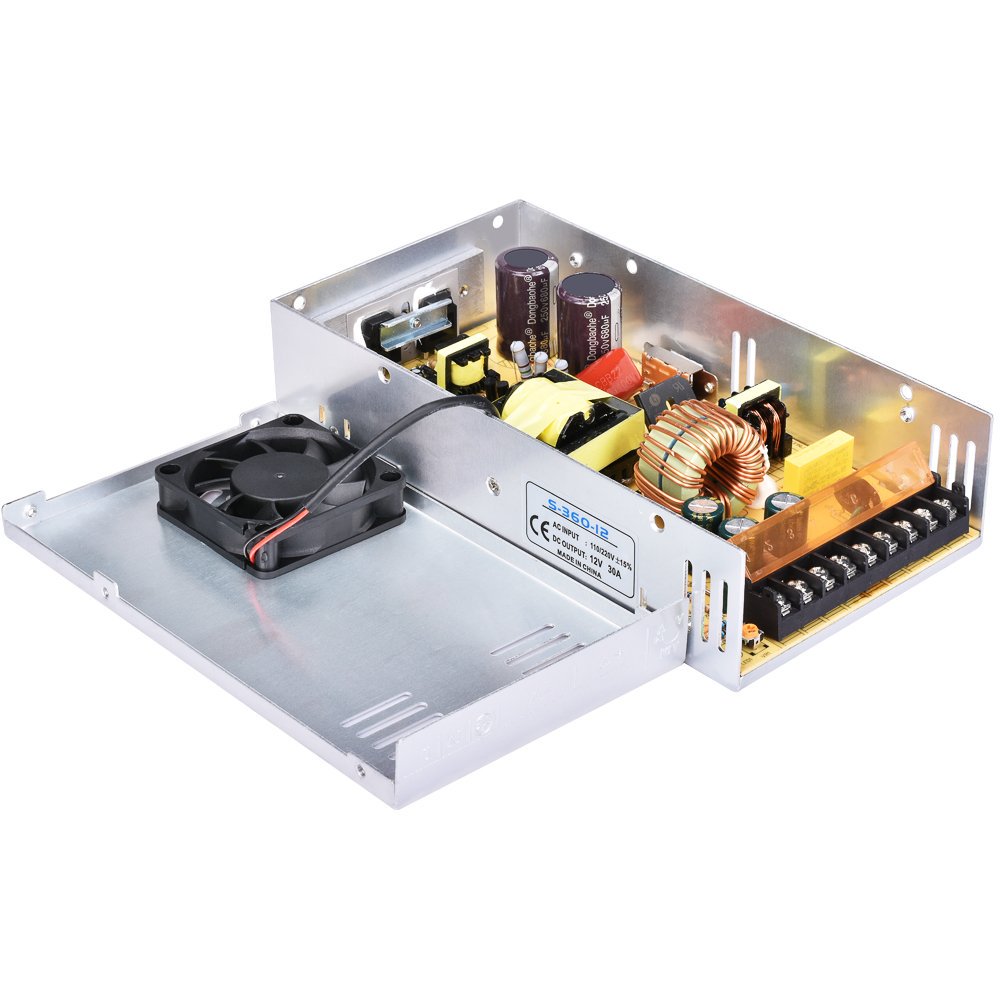

- Cooling method: fan cooling
Description
Basic requirements: 12V 30A 360W
Rated voltage range: 110-220VAC
Input voltage range: 110-220V
Input frequency range: 47 ~ 63Hz
Input voltage protection: 115 ~ 150% intermittent mode
Input voltage recovery: automatic recovery
Impact current: =1%
Machine efficiency: = 0.5%
Output voltage range: 12V ± 0.5%
Output current: 30A
Ripple and noise: =100 mVp-p
Rise time: =50ms
Voltage regulation rate: =0.5%
Load regulation: =1%
Output over-current protection: current sag type
Output short circuit protection: IGBT
Output over-voltage protection: soft-start protection
Insulation resistance: > 50MO
High-quality materials, heat-resistant, dust-proof and moistureproof, flame-retardant, built-in cooling fan, safe and reliable, can guarantee better cooling effect, the service life of up to 20,000 hoursNOTE:
* This product is not waterproof, please be careful when you use it.
* This Power Supply is only suitable for indoor use, non-detachable power shell.
* Don’t place other items in the product range of 5 cm, to ensure the powersupply with good thermal environment and safety.
* Carefully verify the power link is correct rigorously, power lines reversed before use it. Don’t touch the case during the power is working.
* Don’t place other items in the product range of 5cm, in the range of 50cm within the outlet Do not place other flammable items.
* Do not short-circuit output if no output, please use off one minute re-energized.
* Professional installation of qualified electrician is highly recommended.

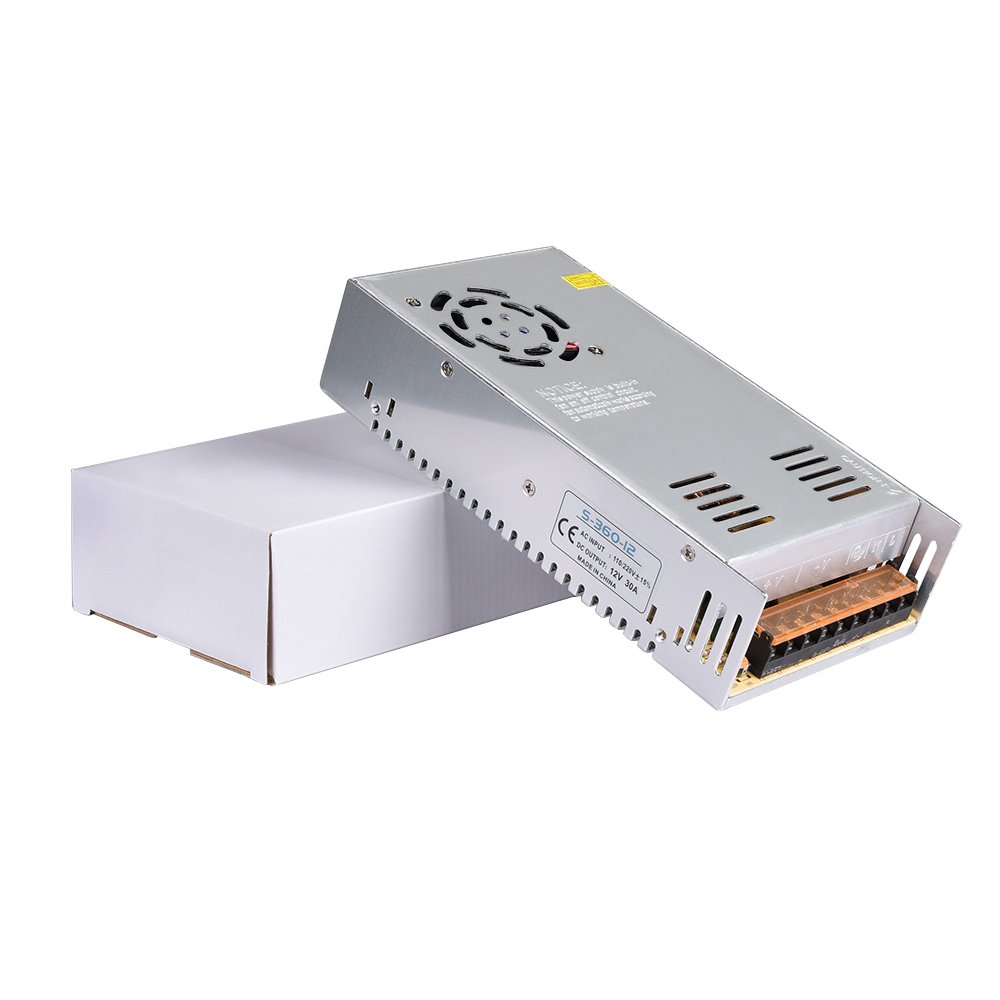

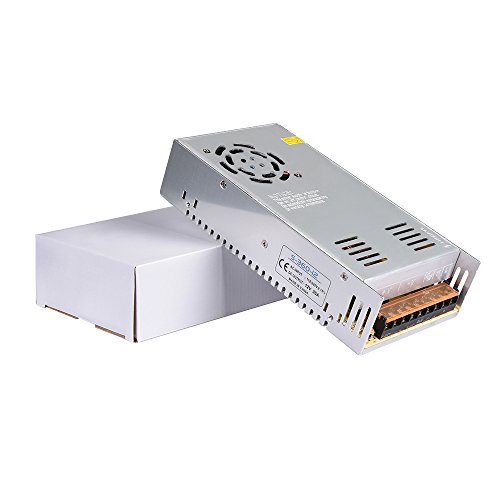

* If the power supply is defective, please contact us at first.Package Included: 1 * 12V 30A Power Supply
