คำอธิบาย

รีโมทคอลโทรล Controller RGB LED Wireless RF 17 Key

---

Remote controller LED RGB 17 key mini rf 12v wireless led with 4pin

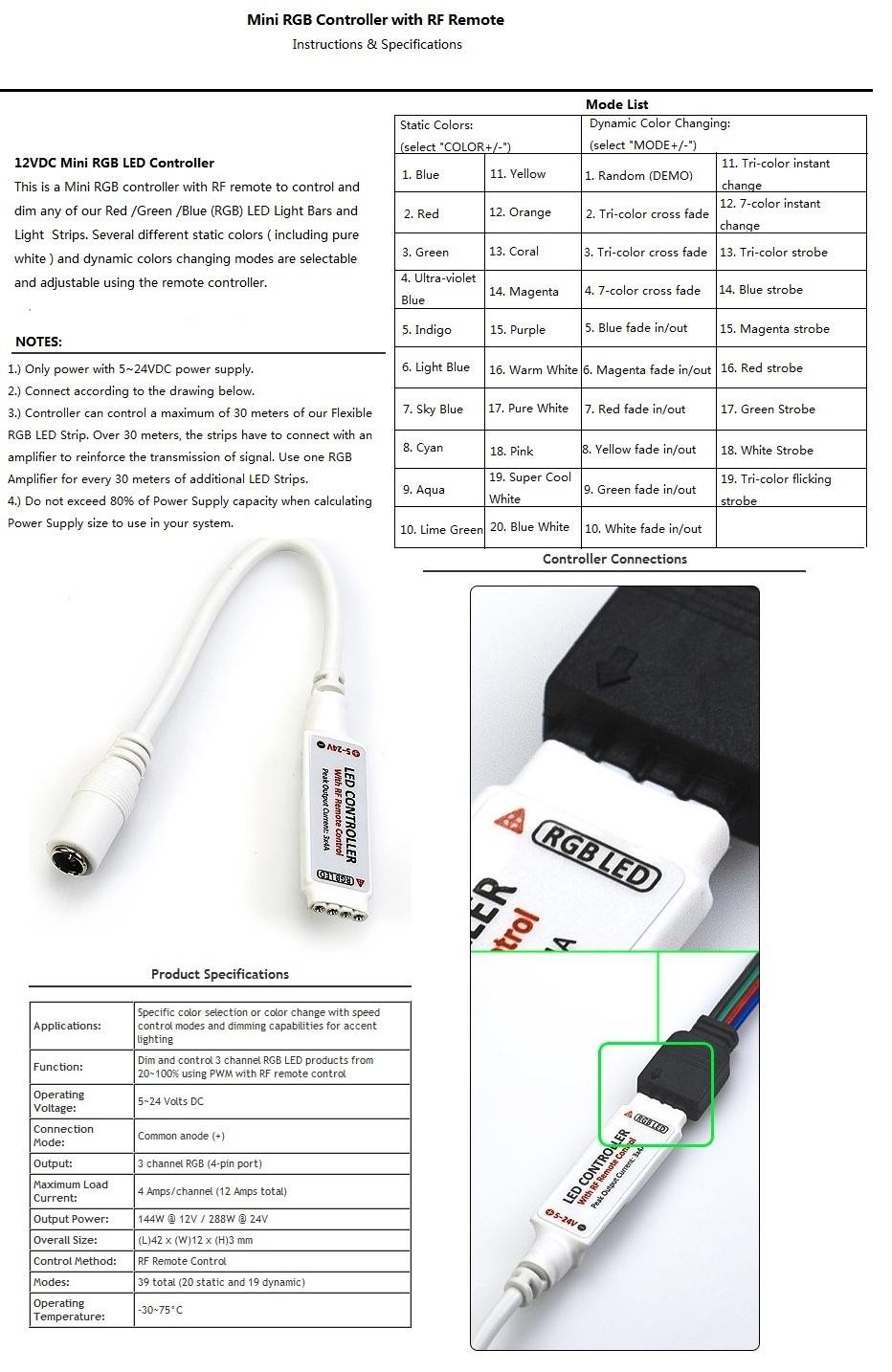

Details:
Working voltage: dc12-24v
Dynamic modes: 22 modes
Static colors: 20 colors
Brightness adjustment: 10 levels

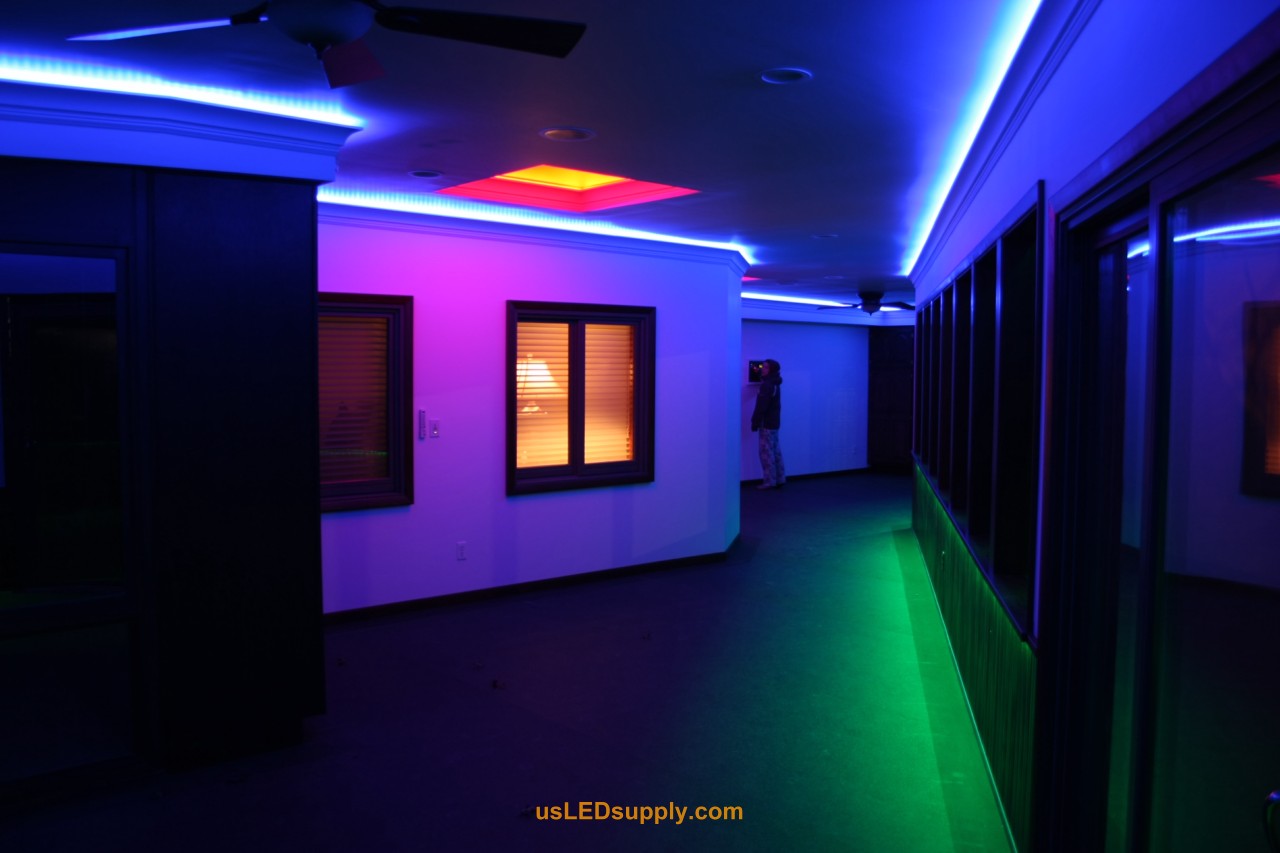

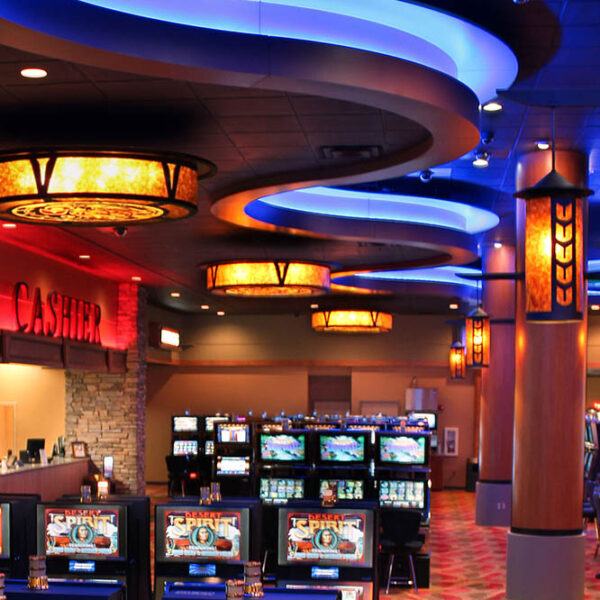

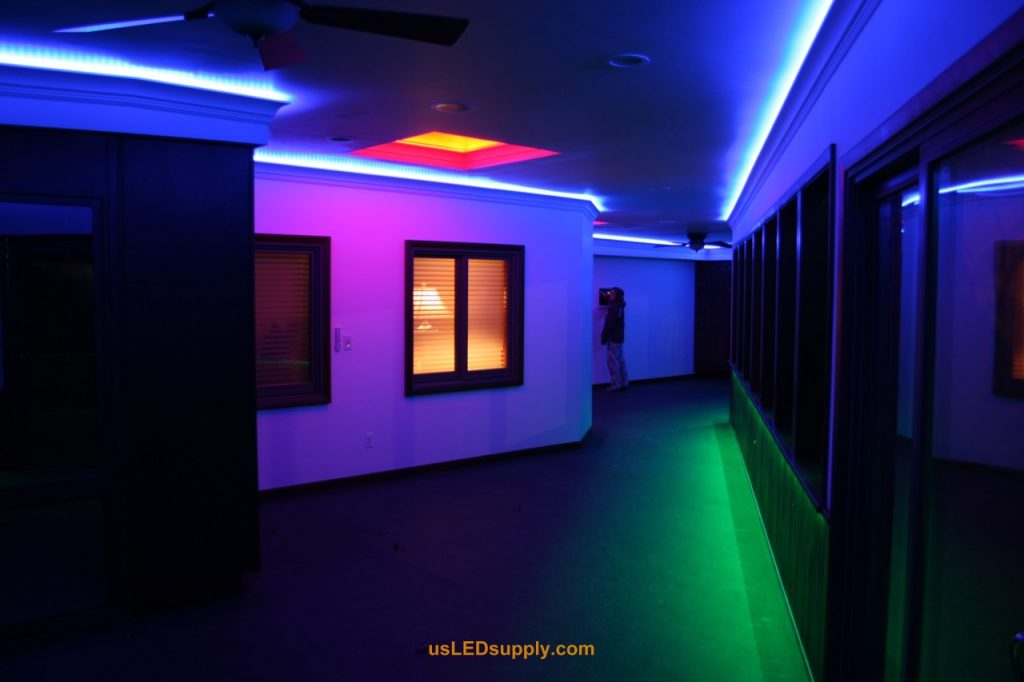

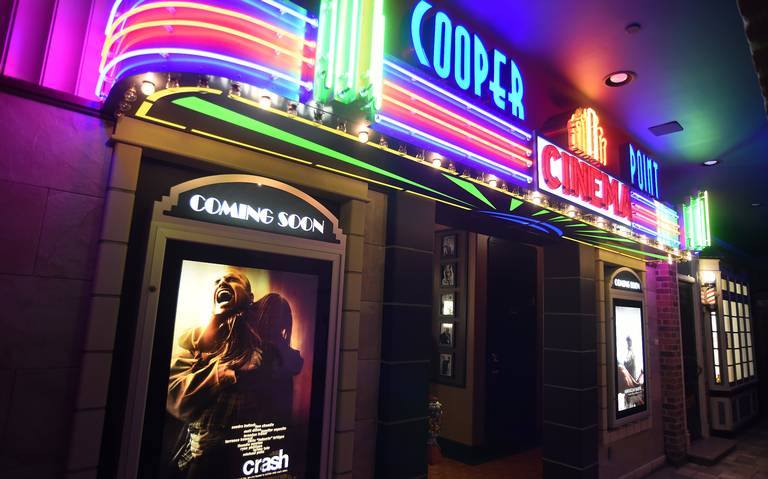

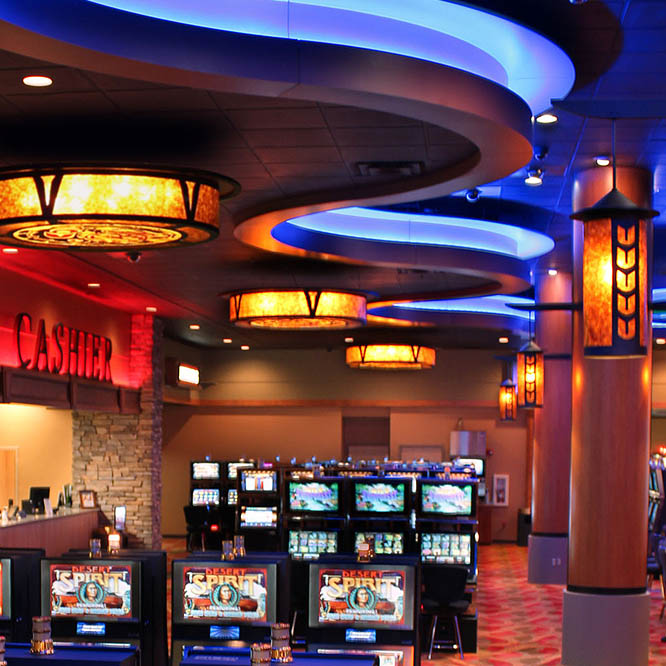

Application: for rgb led strip and module lightings etc.

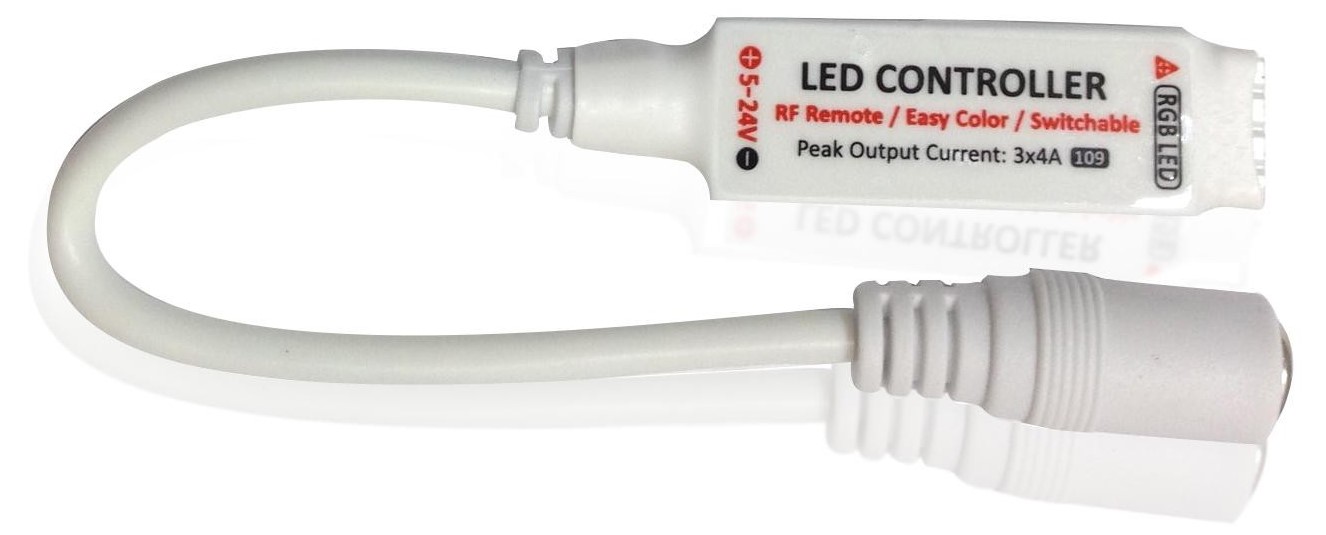

Male and female connector on both end, convenient to install for both novice and professionals.

–Input voltage: 5V-24V/DC
–Working current : 12A / 3 channels
–Overall dimension: 42(L)?12(W)?3(H) mm

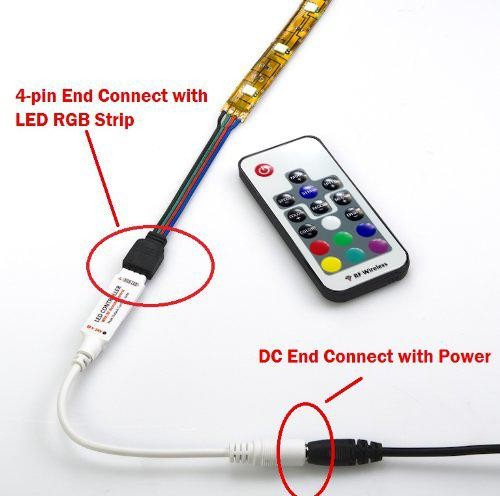

–Female and male connector on both end for strip and power connecting

RF Remote

RF wireless remote signal can pass through barrier,far control distance (15 meters in open area).You don’t have to point the remote tothe receptor as you do with IR remote. The RF remote works as your car key.

Caution: RF remote is driven by 3V CR2025 button battery. Please try to replace with the same type battery.

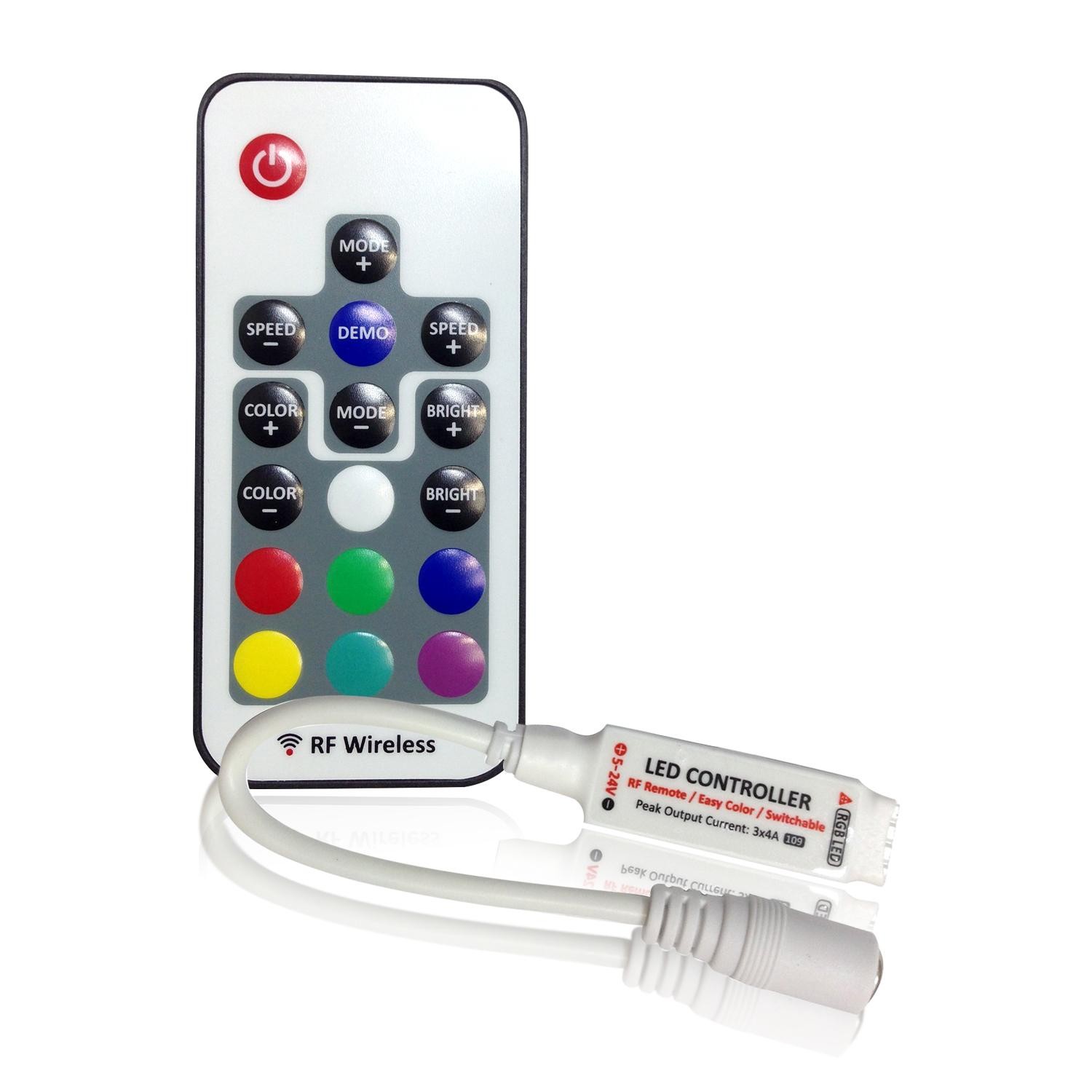

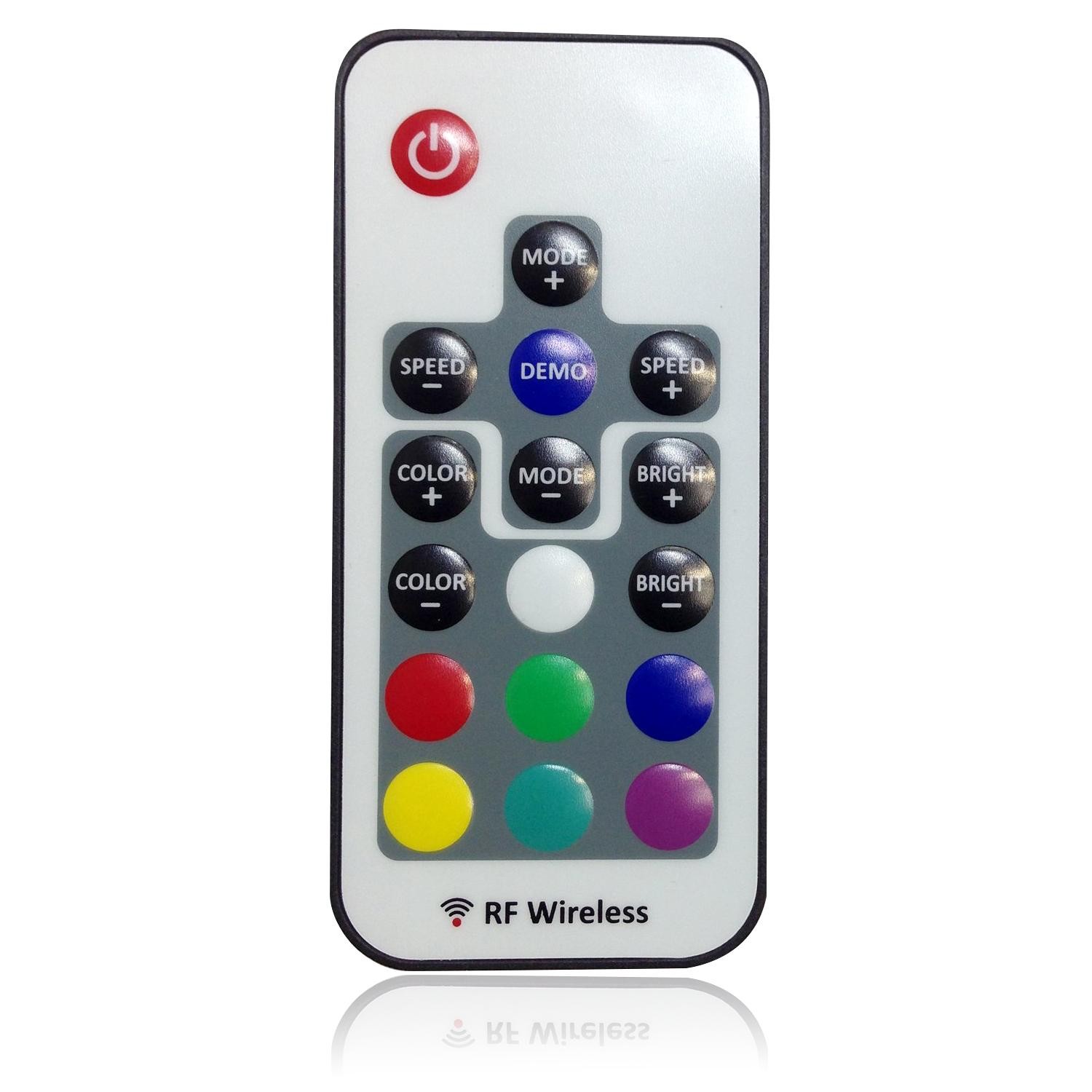

Function buttons on RF remote

-ON/STANDBY: to turn on or switch to standby mode
-30 total modes–20 static colors, 19 dynamic modes
-SPEED+ /SPEED- : adjust lighting speed dynamic mode
-BRIGHT+ / BRIGHT- : adjust lighting brightness in different modes
-DEMO : at demo mode, strip will cycle 9 dynamic modes and each mode for 3 times
-MODE+ / MODE- : switch to dynamic mode from static lighting mode, or switch between dynamic modes
-COLOR+ / COLOR- : static color adjustment.Switch to static color from dynamic mode, or between static colors
-SINGLE COLOR SELECT:white/red/green/blue/yellowing/pink

---
